Patented Drum Gear Kit for use in HP M402

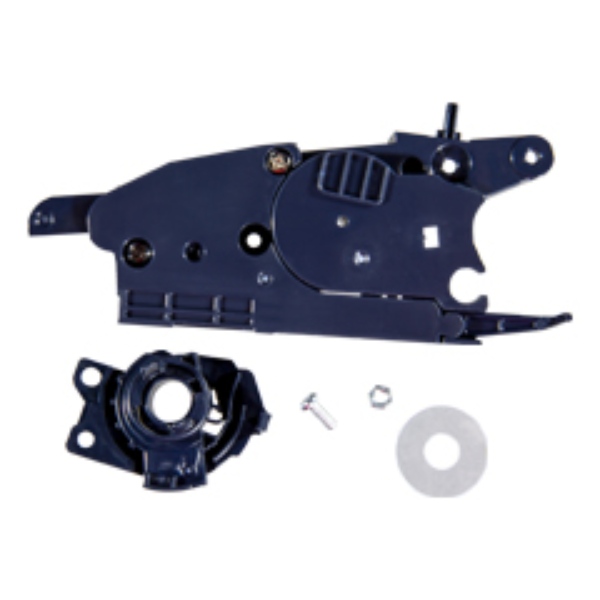

This patented Drum Gear Kit for use in HP M402 cartridges includes: OPC drum drive solution includes an, OPC bearing end plate, hopper end plate, an OPC washer, and a screw and nut.
The HM402PDGRKIT-2 is required for each PG2DRHM402-2-5 drum install (not required for any other drum install) and is sold separately. During remanufacturing the OEM bearing plate on the cartridge is removed with a pry tool to break two ultrasonic welds. During re-assembly, install the clear OPC washer and simply attach the replacement bearing plate with a bolt and nut (provided in the HM402PDGRKIT-2). The cartridge end plate is re-attached using the OEM screws. No further modification of the OEM cartridge plastic is needed.
The HM402PDGRKIT-2 is required for each PG2DRHM402-2-5 drum install (not required for any other drum install) and is sold separately. During remanufacturing the OEM bearing plate on the cartridge is removed with a pry tool to break two ultrasonic welds. During re-assembly, install the clear OPC washer and simply attach the replacement bearing plate with a bolt and nut (provided in the HM402PDGRKIT-2). The cartridge end plate is re-attached using the OEM screws. No further modification of the OEM cartridge plastic is needed.
Login
Invalid email or password.
Information
Product Code
HM402PDGRKIT-2
GTIN:
5056220449049
Specifications
Product Type
Parts
Product Subtype
Parts
Product Dimension
14 x 9 x 1 in
Product Weight
0.16 lb
OEM Cartridge
0452C001 (CRG-041) for Canon LBP312
0452C002 (CRG-041) for Canon LBP312
0452C003 (CRG-041) for Canon Satera MF521
2199C001AA (CRG 052) for Canon LBP214
2199C002 (CRG-052) for Canon i-SENSYS LBP212/214/215, MF421/426/428/429
2200C001AA (CRG 052H) for Canon LBP214
2200C002 (CRG-052H) for Canon i-SENSYS LBP212/214/215, MF421/426/428/429
3252C001 (CRG-121) for Canon D1620/D1650
CF226A (HP 26A) for HP M402, M426
CF226X (HP 26X) for HP M402, M426
CF228A (28A) for use in HP LaserJet Pro M403, M427 MFP
CF228X (28X) for use in HP LaserJet Pro M403, M427 MFP
CF287A (87A) for HP M506/M527/M501
Printer Type
Monochrome Laser Printer
Printer Model
